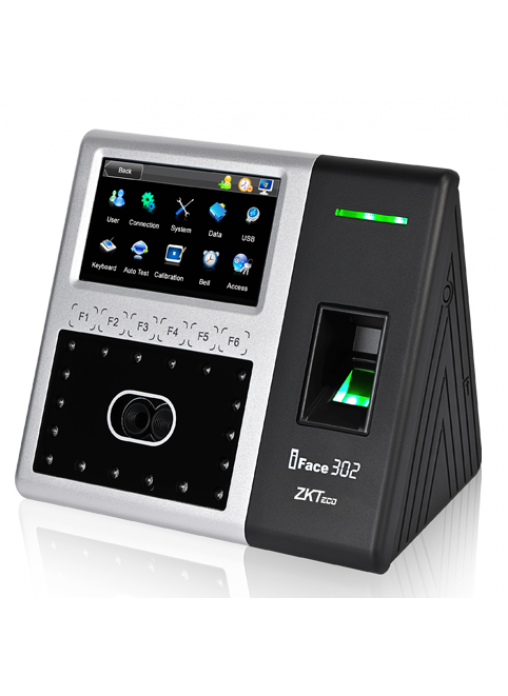

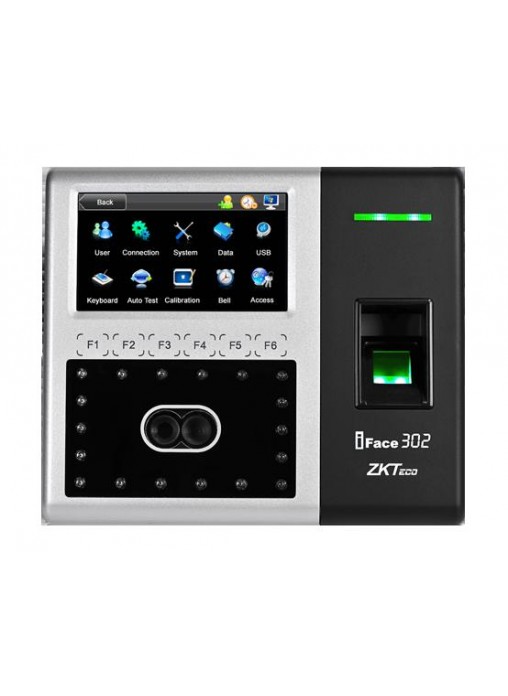

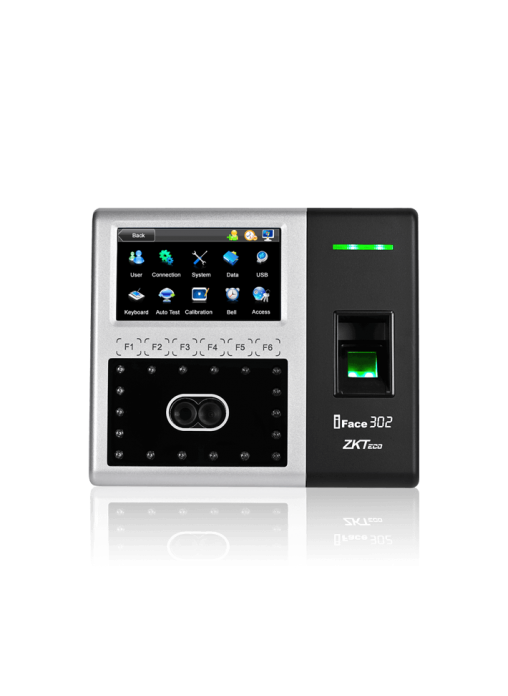

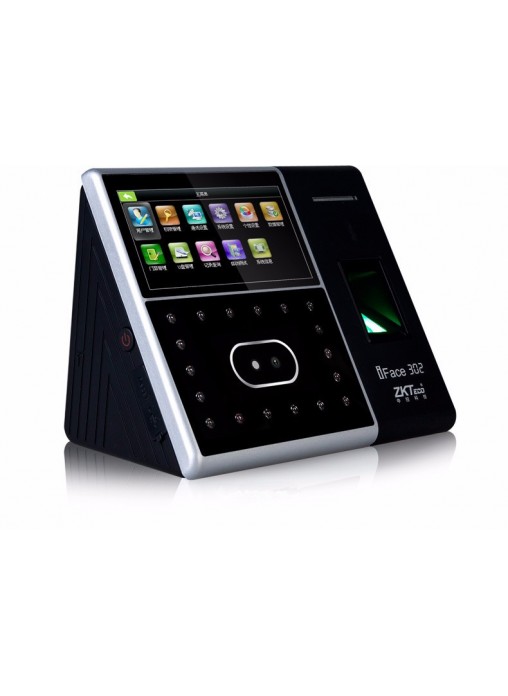

iFace302 multi-biometric identification Time & Attendance and Access Control terminal adopts ZKTeco’s latest platform with ZKFace algorithm and large capacity memory. With the upgraded hardware, it can now store up to 1200 face templates.

It integrates with 800MHz high speed ZK Multi-Bio processor and high definition infrared camera which enables user identification in the dark environment. Face and fingerprint multi-biometric identification methods make it more applicable. Multi-model communications consisting of RS232/485, TCP/IP and Wi-Fi/GPRS (optional) allow an extremely easy data management. Optional built-in 2000 mAh battery eliminates the trouble of power failure.

Features

Ø  Identification methods include Face, Fingerprint/RFID/Password

Ø  Elegant ergonomic design

Ø  4.3’’ TFT touch screen is user-friendly and very intuitive

Ø  6 user-defined function keys

Ø  Contact relays for door access control (wires to door strike or 3rd party panel)

Ø  Web server management software via IE browser.

Ø  Optional extendable scheduled-bell

Ø  Infra-red optical system enables user-identification in poorly lit environments

Ø  Optional built-in battery backup provides approx 4 hours continuous operation

Ø  Optional built-in wireless Wi-Fi or GPRS for wireless communication

Ø  Built-in contacts for 3rd party electric lock, door sensor, alarm, exit button, or bell

Ø  Wiegand Output for connections to 3rd party access control panels.

Specifications

Display - 4.3’’ TFT Touch Screen

Face capacity - 1200 (1:N)

Fingerprint capacity – 2000

ID Card capacity - 10,000

Logs capacity - 100,000

Algorithm Version - ZKFaceVX 7.0 & ZKFinger VX10.0

2000mAh backup battery – Optional

Communication - TCP/IP, RS232/485

USB-HOST - Two USB-Host

Wireless Wi-Fi – Optional

Time attendance Standard functions - Automatic Status Switch, Self-Service Query,

                                                                     Work Code, T9 input, 9 digit user ID, DST, Photo-ID, Scheduled-bell.

Access control interfaces for - 3rd Party Electric Lock, Door Sensor, Exit Button

Wiegand Signal – Output

Optional functions - ID/Mifare Card, Extendable, GPRS, Wi-Fi, 3G, AMDS

Power supply - DC12V 3A

Verification Speed - ≤2 sec

Operating temp - 20%-80%

Dimension(W×H×D) - 193.6×146.8×111 mm

Gross Weight - 1.49 kg
